Lean Docs - Part 1

How has Lean Thinking been applied to a design professionals work?  Are there better ways to document and what does that look like?  Does the BIM environment and workflow reduce or eliminate the need for 2D drawings and documentation altogether?  These are good questions which I will try to address below.

The comment has been made before that Lean is great for manufacturing, but not relevant for what design professionals do.

Lean has great applicability to manufacturing as those processes are more static and there is significant repetition.  Squeezing a few minutes or seconds out of a process that repeats thousands of times creates a savings that can be quantified.  The design and documentation of buildings is indeed different but Lean and other process management approaches are still applicable.  Buildings are comprised of many types of building systems such as interior partitions, HVAC systems, doors, cabinets, interior finishes, etc., - and the efforts of drawing, modeling and documenting them typically require similar if not identical, repetitive steps.  There is value in developing easy to learn and use processes for dealing with the large amounts of repetitious information found on projects.

Default Referencing is a term coined by Grant A. Simpson, FAIA.  It is a methodology that looks for the common, repetitious elements of a building to see what is typical and how to leverage that "typicality" when scheduling.   One example of this is to create rules that apply across the board:

  • ALL CABINETRY IS PLASTIC LAMINATE CLAD, U.N.O. or ALL PARTITIONS ARE TYPE K3, U.N.O. In both cases here the very act of modeling or drawing these components is scheduling the work and may not require any annotation; rather, our work is to identify and document those elements - i.e., the cabinets and partitions that do not meet the rules we just set.

Scheduling Systems - another approach utilizing repeating elements or groupings of elements which are then referenced in an easy to see and understand manner.  The Toilet Types system outlined below falls into this category.

Visual QC - it is advantageous to look through a set of drawings and have the mistakes reveal themselves by virtue of how the drawing elements are shown in context with other elements.  An important corollary is how the lack of information on a drawing or a model can be a purposeful clue and means to indicate there are decision(s) yet to be made or needed information is lacking.


Every building has restrooms comprised of plumbing fixtures and toilet accessories (yes, this is truly exciting stuff).  In addition to meeting clearance requirements for accessibility the components must be usefully arranged, scheduled and dimensionally located.

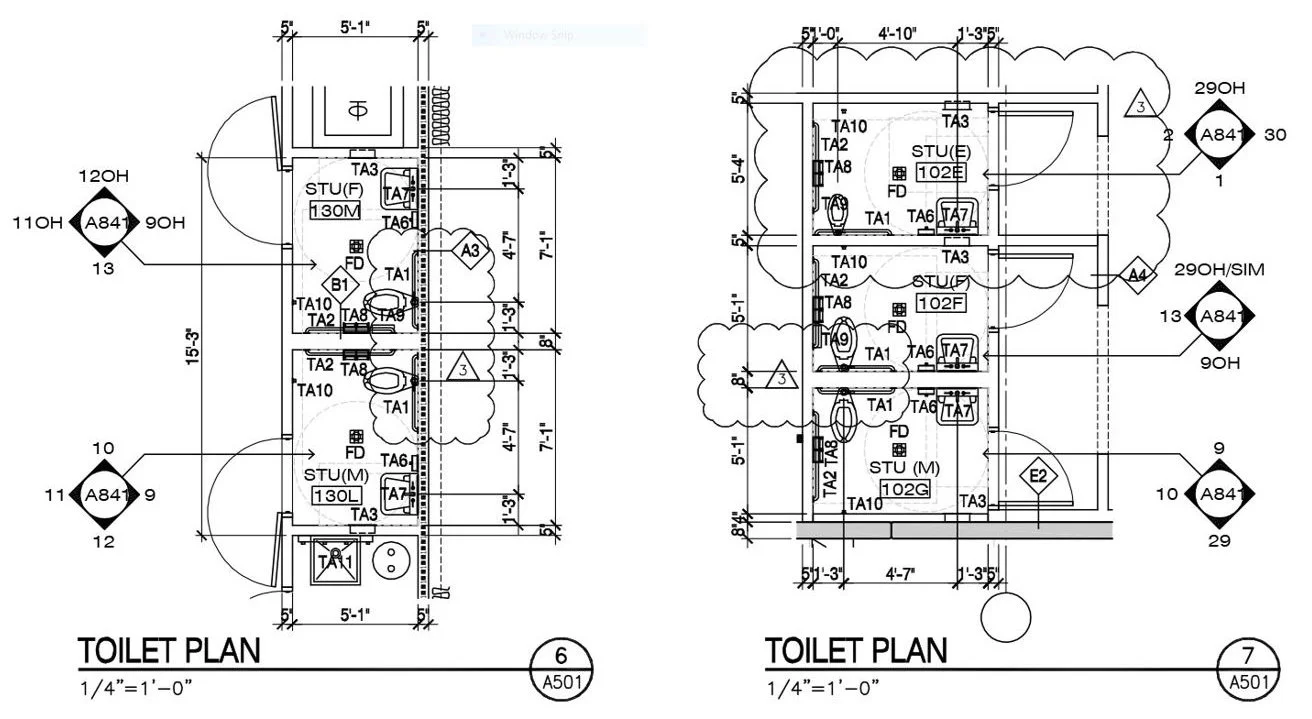

A good example of how restrooms are documented by many firms.

A good example of how restrooms are documented by many firms.

Established Process

There is some variation, but most projects will do something like this:

  • Draw and model correctly.
  • Create enlarged toilet plans for each restroom.
    • Dimension overall restroom and tag partitions as needed.
    • Dimension all fixtures horizontally
    • Tag and dimension horizontally all toilet accessories
  • Create interior elevation of the walls with fixtures or cabinetry.
    • Dimension all fixtures vertically (WC seat heights, sink clearance, etc.)
    • Tag and dimension vertically all toilet accessories
  • Create the Toilet Accessories schedule

QA:  how do we know that accessibility clearances are correctly documented?  Check each instance to verify with ADA, ANSI or other applicable references.


More often than not, the needed information to bid and do the work is scattered throughout a drawing set requiring a contractor to reference multiple sheets in order to piece together the relevant work.

  • Drawings or schedules indicating ADA / ANSI accessibility clearances and related requirements are provided on a General sheet
  • Enlarged plans are on the A3 series of drawings
  • Interior elevations are found on A8 series sheets
  • Toilet accessory schedules will either be located in the Specifications or on a sheet

It is common to see fixtures and accessories tagged and dimensioned on both enlarged plans and interior elevations.  This duplication of information takes time to annotate, must be reviewed and creates an opportunity for errors.

With regards to recreating drawings that indicate ADA / ANSI requirements, use caution as these generally give ranges for heights and clearances.  Your project's restroom layout and design may need the contractor to install items at specific heights or locations to coordinate with Architectural features such as wall tile designs or layout constraints.

  • For example, the 2010 ADA Standards states that horizontal grab bars are to be mounted with the top of the gripping surface between 33 and 36 inches above the finished floor.  That 3 inch range allowed may be more than your design can accommodate and not conflict with the top of a tile wainscot.
System on a sheet - Toilet Types

System on a sheet - Toilet Types

Lean Process

  • Draw and model correctly.
  • Create enlarged toilet plans for each type or instance of a restroom layout.
    • Dimension overall restroom and tag partitions as needed.
    • Place toilet fixture type Marks onto the plans
  • Place toilet room types mark onto 1/8" floor plans
  • If needed, provide interior elevations for cabinetry or to indicate complex wall tile patterns.  Toilet fixture and accessories are pre-elevated already.

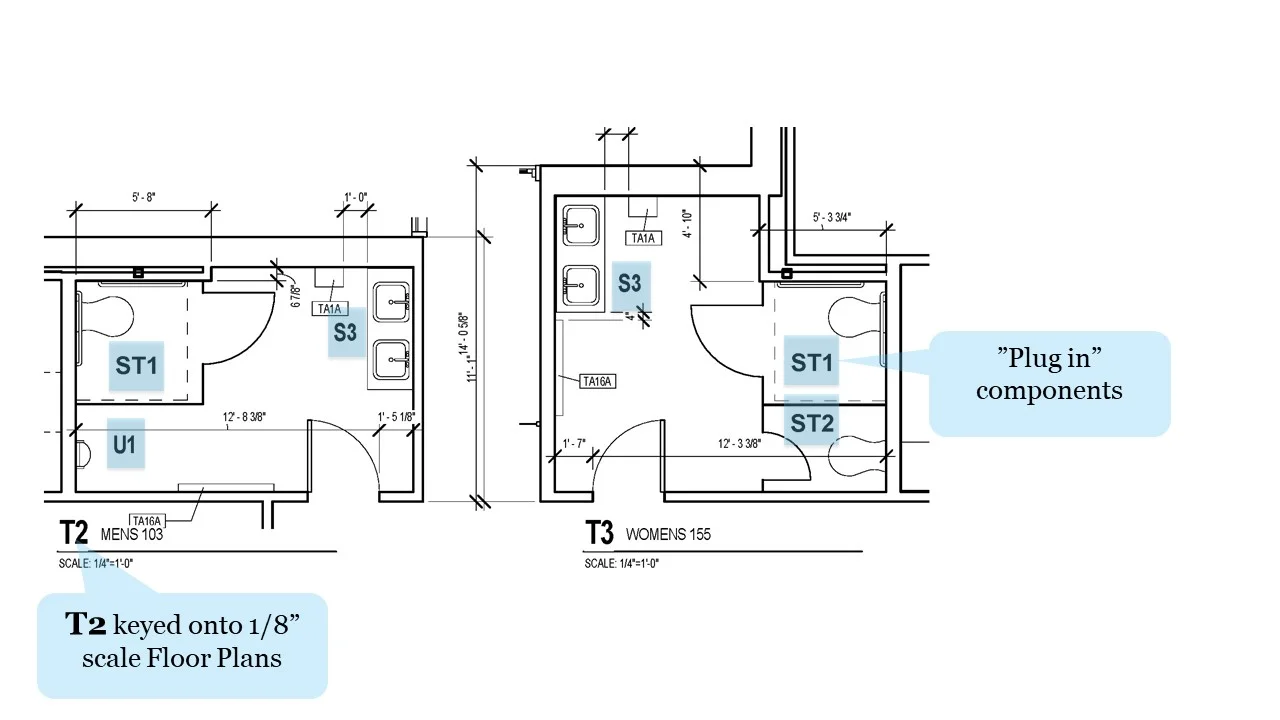

1/8" scale Floor Plan with Tags at enlarged plans to simplify documentation

1/8" scale Floor Plan with Tags at enlarged plans to simplify documentation

1/4" scale enlarged plans

1/4" scale enlarged plans


Accessibility clearances are correctly documented as the drawings reference pre-checked toilet fixture vignette drawings.

Pre scheduled vignette toilet fixtures w/ tagged accessories and clearances noted

Pre scheduled vignette toilet fixtures w/ tagged accessories and clearances noted

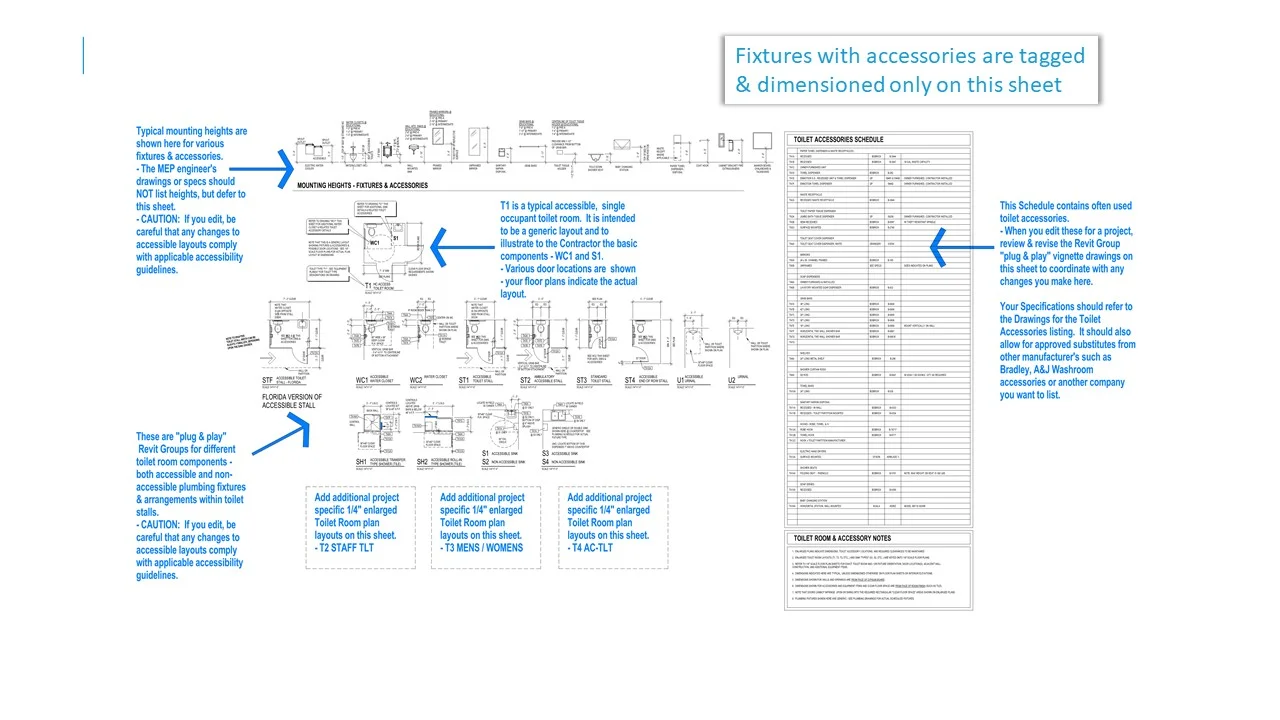

"One stop shopping" - enlarged plans, fixture and accessory mounting height criteria, vignette toilet fixture layouts, sinks, showers, etc., w/ accessories and schedules.  All of this is located together on one sheet to facilitate ease of use and checking.


Just like in CAD, poor work practices in BIM will lead to errors.  The benefits afforded by modeling should not be confused with the need to clearly understand the work that is being designed and the requisite thinking.  Accuracy in modeling does not mean that building elements are necessarily constructible or that layouts are well thought out.

Many firms are seeing BIM drawing sets swell in size.  Looking more closely, this is not due to increased building complexity but instead the ease with which users can create views and populate drawings onto sheets.  My July blog post noted that many believe that merely cutting a section or detail from the model to view and study the building automatically earns it a right to be on the CD set.


It has been said that a picture is worth a thousand words.  And while written text will continue to serve an important role in the architects documents, graphics best convey the visual organization of elements and the relationships between them.  It is a worthwhile effort to employ graphics with scheduling techniques to simplify how you produce and present your work.  It will bring value to your office and to the users of your documents.


Next post I'll share additional details of the Toilet Types sheet system.
